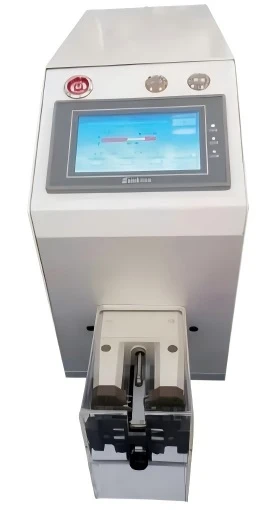

KWS-F065-A
Automatic Inductive electric Stripping machine
Product features：
1, Pure electric wire stripping machine, all parameters are
computerized settings with high precision, being simple and convenient
debugging.
2. Equipped with 90-degree V-shaped cutter,
workers do not need to replace too frequently the cutter when processing different wires.
3. It can mostly store 30 groups of parameters,
which greatly saves the adjustment time and material waste.
4. Wire diameter range: AWG#30-AWG#4 (0.04-20 square millimeters), stripping length: 1mm-40mm.
Technical Parameters：
|
Wire Diameter Range |
AWG#30-AWG#04(0.04-20 square millimeters) |
|
Functions |
Semi-stripping, complete stripping, double stripping, sheathed wire stripping |
|
Speed |
1800-2000pcs/h |
|
Peeling Length |
1mm-40mm |
|
Adjustable Precision |
±0.05mm |
|
Voltage |
AC220V 50/60Hz |
|
Size |
500*620*300mm |
|
Weight |
20KG |
